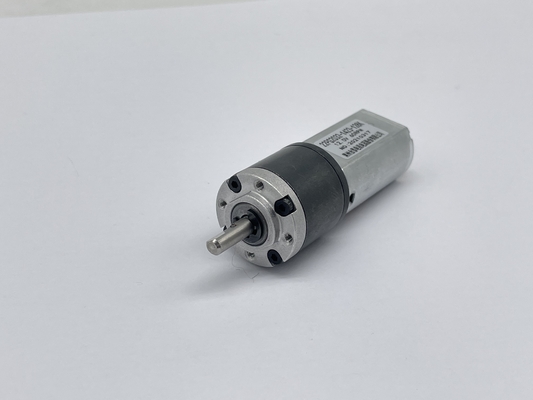

22MM 1/41~1/144 Powder Metallurgy Planetary Reducer Gearbox With Stepper Motor Or Brushless Motor
| Place of Origin | Changzhou |
|---|---|
| Brand Name | Hetai |
| Certification | CE ISO |
| Model Number | PG22A-PM-HT |
| Minimum Order Quantity | 50 |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 30days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Planetary Reducer Gearbox | Ratio | 4-144 |
|---|---|---|---|
| Bearing At Output | Porous Bearing | Radial Load (10mm Fromflange) | ≤35 |
| Shaft Axial Load | ≤15 | Shaft Press Fit Force MaxStatic (N) | ≤80 |
| Radial Play Of Shaft | ≤0.08 | Thrust Play Of Shaft | ≤0.4 |
| At No-load | ≤1.5° | ||
| Highlight | 22MM Planetary Reducer Gearbox,Brushless Motor Planetary Reducer Gearbox,1/144 Planetary Reducer Gearbox |
||
Product Description
Product Description:
This product is a powder metallurgy planetary gear with a diameter of 22MM. It integrates the advantages of high precision, lightweight and compact design. It is specially designed for application scenarios with limited space and strict performance requirements.
Features:
Shell Material: The powder metallurgy output bearing is an oil-impregnated bearing. This material not only has good self-lubricating properties, reducing maintenance requirements, but also has excellent wear resistance and corrosion resistance, ensuring the stable operation of the reduction gearbox in harsh environments.
Reduction Ratio range: Provides a wide range of reduction ratio options from 1/4 to 1/144 to meet different transmission ratio needs and achieve precise speed adjustment and torque amplification.
Rated Load Capacity: The rated allowable load is between 0.1NM and 0.8NM, adapting to a variety of load conditions to ensure the stability and reliability of the transmission system.
High Efficiency: The maximum efficiency can reach 81%, effectively reducing energy loss and improving overall system performance.
Performance:
Compact Size: The length ranges from 13.9MM to 43.96MM, and the lightest weight is 29g to the heaviest 73g, which greatly saves installation space and reduces the overall weight of the equipment. It is suitable for integration into miniaturized and lightweight equipment.
Low Noise: Through precision processing and optimized design, operating noise is effectively reduced and the user experience is improved.
Long Life: Powder metallurgy bearings and high-efficiency transmission design extend product service life and reduce replacement frequency.
Parametric Drawings:
| Reduction Ratio |
Exact Reduction Ratio |
Rated Tolerance Torque (Nm) |
Momentary Tolerance Torque (Nm) |
Efficiency (%) |
Length (mm) |
Weight (g) |
Numberof geartrains |
| 1/4 | 1/4 | 0.1 | 0.3 | 81% | 13.9 | 29 | 1 |
| 1/4.75 | 1/4.75 |
||||||
| 1/16 | 1/16 | 0.4 | 1.2 | 72% | 32.4 | 52 | 2 |
| 1/19 | 1/19 | ||||||
| 1/22 | 1/22 | ||||||
| 1/26 | 1/26.125 | ||||||
| 1/64 | 1/64 | 0.8 | 2.5 | 65% | 43.9 | 73 | 3 |
| 1/76 | 1/76 | ||||||
| 1/88 | 1/88 | ||||||
| 1/2004 | 1/104.5 | ||||||
| 1/2021 | 1/2021 | ||||||
| 1/2044 | 1/143.687 |
Applications:
Automation Quipment: such as robot joints, precision assembly machinery, etc., require high-precision, low-noise transmission solutions.
Medical Equipment: such as precision transmission components in surgical robots and portable medical equipment.
Consumer Electronics: smart wearable devices, drones, etc., require transmission components that are small in size, light in weight and
stable in performance.
FAQ:
Q: Does this reduction gearbox support customized reduction ratio?
Answer: Yes, we provide customized services and can adjust the reduction ratio range according to the specific needs of customers to meet specific application needs.
Q: How to ensure the efficiency of the reduction gearbox in a high load environment?
Answer: By optimizing gear design and material selection, as well as precise assembly processes, it is ensured that the reduction gearbox can maintain high efficiency operation and reduce energy loss even under high load conditions.
